Roof & tile roof panel forming machine
This roll forming machine is the special high speed roll forming machine for steel sheet cold-form industries. It has pressing system and can continuous form the steel sheet according to customer’s requirement, automatically cut to length. This equipment has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good look and so on.
- Working flow
De-coiling→guiding and feeding→Roll forming→Cut to length →Run out table
| Item | Parameter | |
|---|---|---|
| Suitable material | Type | GI, PPGI |
| Thickness | 0.4-0.8 (mm) | |
| Machine Materia | Active shaft | No.45 steel tempered |
| Roller | No.45 steel chrome plated | |
| Cutting Blade | Cr12 quenched | |
| Power Requirement | Type | 80V/3PH/50HZCustomized |
| Main Motor | 3kw | |
| Hydraulic | 2.2kw | |
| Hydraulic Cantilever Decoiler | Type | Hydraulic automatic |
| Max Capacity | 2000kgs | |
| Suitable OD | 1200mm | |
| Suitable ID | 508/610mm | |
| Max Width | 300mm | |
| Motor Power | 2.2kw | |
| Hydraulic Power | 2.2kw | |
| Forming Speed (Excludes cutting punching) | 20-25m/min | |
| Forming Stand | About 14 group | |
| Transmission | Chain,sprocket | |
| Type of Cutting | length-set cutting | |
| Control System | Mitsubishi PLC transducer | |

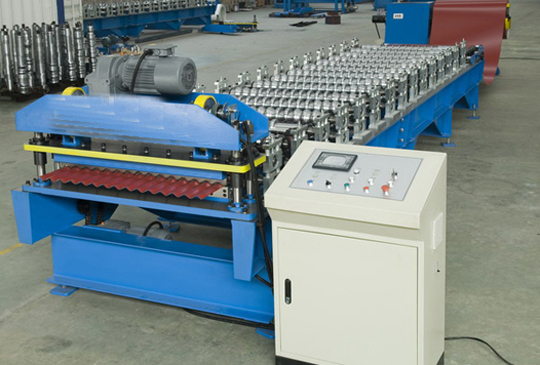

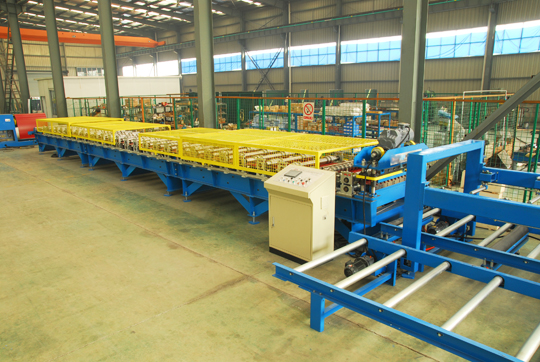

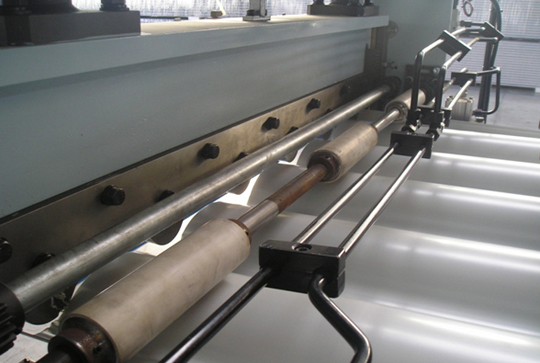

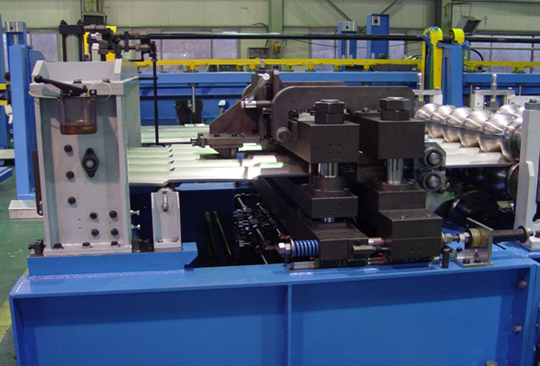

Details of Metal Roll Forming Machine:
